Detail / Body Lifting Trolley
Specifications:

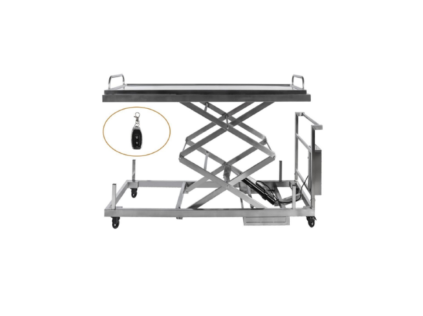

Body Lifting Trolley – ABLT-R02
- Material: Stainless Steel 304
- Operation: Fully Electric (Battery Powered)
- Operation Method: Remote Keypad
- Remote Control Range: Up to 5 m
- Adjustable Lift Height: 400–2000 mm
- Dimensions (Lowest Position): 2060 × 670 ×
450 mm - Dimensions (Highest Position): 2060 × 670 ×
2000 mm - Body Tray Size: 1940 × 580 mm
- Number of Trays: 2 Units
- Carrying Capacity: 200 kg
- Wheel: 4 Casters (2 Lockable)
- Battery: 12V Battery-Powered Hydraulic
Pump - Charging Time: 4–8 Hours
FEATURES:
Body Lifting Trolley – ABLT-R02
- Hydraulic Lifting Trolley
- Lifting Height: 400–1700 mm
- Full 304 Stainless Steel Construction
- Independent Body Tray Design
- 200 kg Load Capacity
- Energy-Saving Mechanical System
- Corrosion-Resistant Hydraulic Rod
- Independent Pedal Operation
- Directional Wheels with Brake
- Tray Lock Safety System
- 125 mm Heavy-Duty Casters
- Customizable Height & Body Tray
Width
